URL vs URI vs URN — Modern Web Anatomy (with SPA Context)

TL;DR: URI is the superset concept. URL (locator) and URN (name) are both kinds of URIs. A URL says where/how to fetch. A URN says what it is named inside a formal namespace (location-agnostic). Most day‑to‑day dev work is with URLs; URNs appear in niche namespaces (ISBN, RFC, UUID, package metadata, some XML/semantic vocabularies). Understanding the generic URI grammar unlocks consistent parsing, state encoding in SPAs, and cleaner routing.

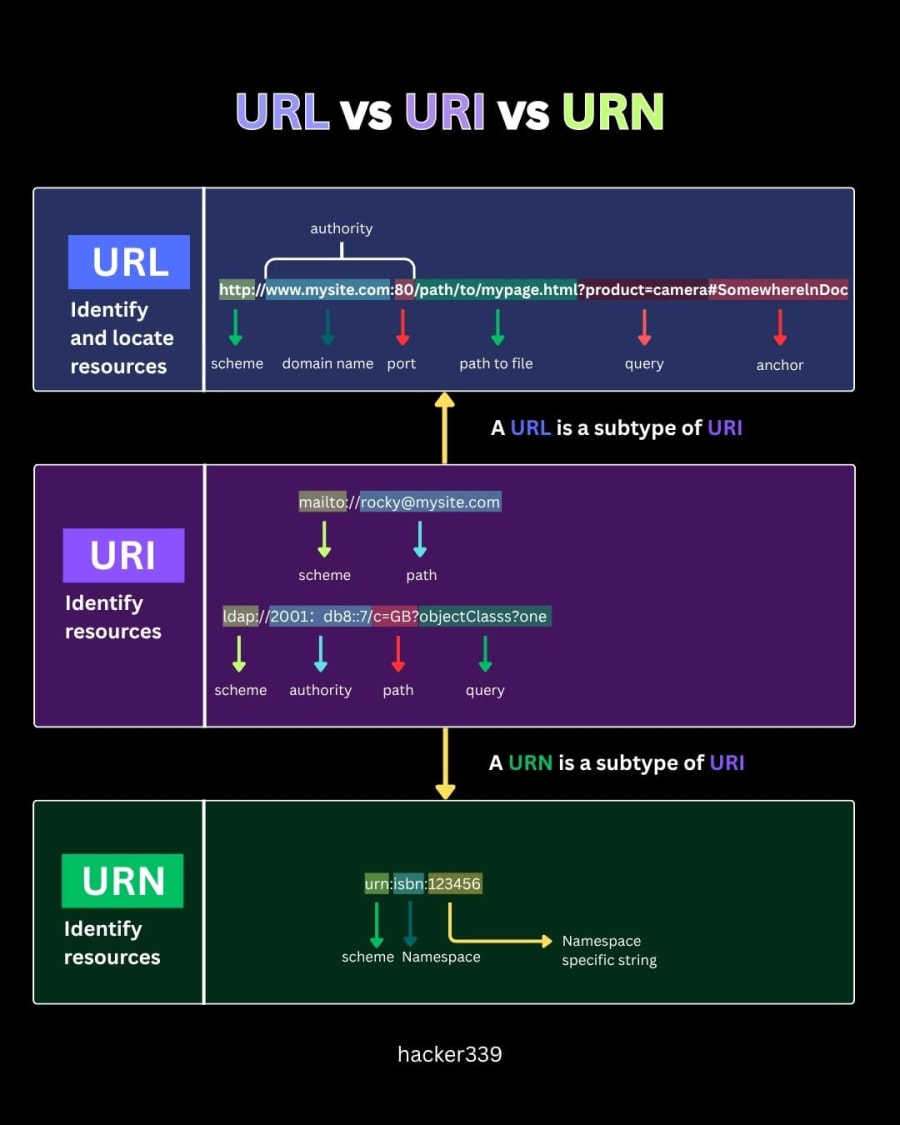

1. The Core Hierarchy

URI
├── URL (Uniform Resource Locator)
└── URN (Uniform Resource Name)

Think: All squares are rectangles. A URL is a URI that contains (or implies) a network access mechanism (scheme + authority + optional path etc.). A URN is a URI that names a resource in a persistent, location‑independent namespace: urn:isbn:9780141036144.

Term	Stands for	Core Purpose	Example
URI	Uniform Resource Identifier	Generic identifier string form	https://example.com/docs?page=2#intro
URL	Locator (a URI subtype)	Locate & access resource (typically via protocol)	https://api.example.dev/v1/users?id=42
URN	Name (a URI subtype)	Persistent, location‑agnostic name	urn:ietf:rfc:7230

2. Generic URI Syntax (RFC 3986 Pattern)

<scheme>://<authority><path>?<query>#<fragment>

Only scheme is mandatory in a minimal absolute form; other pieces appear when meaningful. Authority may embed userinfo and port.

Component	Subparts	Separator(s)	Purpose	Example Values
scheme	—	: (then often //)	Defines interpretation & initial protocol rules	http, https, mailto, urn, blob, data, ws, wss
authority	userinfo@ host : port	// prefix; @, :	Names network location & optional credentials	api.example.com:8443, user:pass@host
userinfo	username[:password]	@ after credentials	Legacy/basic access (rare in public web)	admin:secret@
host	domain / IPv4 / [IPv6]	—	Network address label	example.com, 127.0.0.1, [2001:db8::1]
port	digits	: after host	Overrides default port for scheme	443, 3000
path	segments separated by /	/	Hierarchical resource location	/v1/users/42
query	key=value pairs (URL-encoded)	? then &	Non-hierarchical parameters / filters / state	page=2&sort=desc
fragment	opaque interpreter-specific token	#	Client-side intra-resource reference or state anchor	#section-3, #/?modal=login

Note: Some schemes omit certain pieces (e.g., mailto:, urn: have no authority; data: encodes media inline).

3. URL: Practical Anatomy

Using the Web API URL interface (MDN reference), once parsed you get ergonomic properties:

const u = new URL("https://user:pw@sub.example.dev:8443/reports/q1/summary?region=emea&sort=asc#section-2");
{
  protocol: 'https:', // includes ':'
  username: 'user',
  password: 'pw',
  host: 'sub.example.dev:8443',
  hostname: 'sub.example.dev',
  port: '8443',
  origin: 'https://sub.example.dev:8443',
  pathname: '/reports/q1/summary',
  search: '?region=emea&sort=asc',
  hash: '#section-2'
}

searchParams lets us treat the query as a map:

u.searchParams.get('region'); // 'emea'
u.searchParams.set('page', '2');

Frequent URL Misunderstandings

Myth	Reality
"URL and URI are different things"	A URL is one kind of URI.
"Fragment is sent to server"	It is not (unless turned into part of path/query by client routing).
"Everything after ? is query param pairs"	Some apps embed JSON or base64 — allowed, but readability trade-off.
"Ports must always be specified"	Default ports (80, 443, etc.) are implied.
"Username/password are common"	Largely discouraged; use headers/OAuth not user:pass@ in production.

4. URN: Pure Naming

A URN identifies by name only. Pattern is:

urn:<NID>:<NSS>

Where NID is namespace identifier (case-insensitive) and NSS is namespace-specific string, guaranteed unique within that namespace.

Examples:

Namespace	URN Example	Meaning
ISBN	urn:isbn:9780141036144	Book by ISBN code
IETF RFC	urn:ietf:rfc:7230	HTTP/1.1 RFC 7230 specification
UUID	urn:uuid:123e4567-e89b-12d3-a456-426614174000	Specific universally unique identifier
OASIS	urn:oasis:names:specification:docbook:dtd:xml:4.5	DocBook DTD name

No authority, no path/query/fragment in the typical web sense. Resolution (turning the name into a retrievable representation) is external and namespace-dependent.

5. Relative References & Base URLs

Not every identifier you write is absolute. In HTML & modules:

<a href="../images/logo.svg">Logo</a>
<script type="module" src="./main.js"></script>

The browser synthesises the absolute URL using the document base (<base href> or the document location). The URL() constructor mirrors this when you pass a second argument.

6. How SPAs Use The Pieces

Modern Single Page Applications repurpose normal URL parts for client state:

Part	SPA Usage Pattern	Pros	Cautions
Path	Logical route hierarchy (/dashboard/accounts/42)	Bookmarkable, SEO, shareable	Deep nesting can bloat bundle splits
Query	Filters, pagination, sort, feature flags (?page=2&sort=price)	Reflects user intent; easily diffable	Overloading can create opaque long strings
Fragment (hash)	Legacy routers (#/inbox/5), scroll targets, ephemeral UI (#modal=signup)	Doesn't hit server; fast local transitions	Not indexed the same way; can complicate analytics
Subdomain	Multi-tenant or environment scoping (eu.app.example.com)	CDN separation; tenancy isolation	TLS & wildcard cert complexity
Port	Local dev (:5173, :3000)	Parallel micro-frontend dev	Avoid leaking non-standard ports in prod links
Scheme	Security + protocol upgrade (http → https, ws → wss)	Integrity & modern APIs require https	Mixed content/CDN edge cases
Query (encoded state)	Persisting UI layout (layout=grid&cols=4)	Restores state on refresh	Keep size < ~2KB for shareability
Fragment (in-app router)	Offline-first static hosting hacks	Works with simple static hosts	Prefer History API now

Query vs Fragment for State

Use Case	Prefer Query	Prefer Fragment
Affects server-side caching / SSR result	✅	—
Purely client visual mode toggle	—	✅
Should be shareable & crawlable	✅	(Maybe)
Sensitive to ordering & diffing for analytics	✅	—
Must not trigger server 404 on static host	—	✅

History API Harmony

Modern routers use pushState to keep semantic paths without reloading. Under the hood they still form proper URLs so deep links function with server rewrites (e.g., catch-all to index.html).

7. Designing Clean API & App URLs

Principles:

1. Stability over cleverness — Changing /v1/users to /u saves 3 chars and burns muscle memory.
2. Hierarchy mirrors resource nesting — /accounts/42/transactions/2024 reads like a breadcrumb.
3. Short plural nouns for collections; singular for specific resource (/users vs /users/42).
4. Consistent separators — prefer hyphens over underscores in path segments.
5. Avoid encoding entire state blobs — Resist base64 mega-query strings; consider server sessions or localStorage for large, non-shareable view state.
6. Version in path or subdomain, not query — /v2/ or v2.api.example.com.
7. Lowercase paths — Case-insensitive mental model; avoid 404 surprises on case-sensitive servers.
8. Human-first, machine-also — Slugs: /posts/how-url-parsing-works > /posts/9f2a01 (maybe both: ID + slug).

8. Validation & Parsing Strategies

Native URL

new URL() throws on invalid absolute URLs. For relative parsing supply base. Use URL.canParse() (newer) for preflight.

Defensive Steps

• Normalise trailing slashes.
• Percent-encode unsafe characters (path vs query rules differ).
• Whitelist acceptable schemes (https, wss, maybe blob, data if controlled).
• Reject embedded credentials in publicly shared URLs.
• Limit query key count to prevent abuse.

Example Utility (Lightweight)

export function parseAppUrl(str, base = window.location.origin) {
  if (!URL.canParse(str, base)) throw new Error('Invalid URL');
  const u = new URL(str, base);
  return {
    origin: u.origin,
    path: u.pathname.replace(/\/+$/, ''),
    params: Object.fromEntries(u.searchParams.entries()),
    fragment: u.hash.startsWith('#') ? u.hash.slice(1) : u.hash
  };
}

9. Encoding Nuggets

Layer	Example	Notes
Percent-encoding (path)	space → %20	Avoid + (query forms may treat differently)
Query param encoding	name=Jalal%20al-Din	Use URLSearchParams to avoid manual mistakes
Reserved chars	:/?#[]@!$&'()*+,;=	Roles vary by component — escape when literal
International domains	münich.example → xn--mnich-kva.example	Punycode via toASCII (WHATWG URL)
Fragment encoding	#section 2 → #section%202	Browser may auto-encode when setting hash

10. URNs in Practice Today

While rarer in frontend application code, URNs surface in:

• Metadata (e.g., EPUB manifest using urn:isbn:)
• Standards referencing other specs (RFC refs)
• Namespace declarations (XML Schema, DocBook, OASIS)
• UUID-based names where persistence matters independent of host servers

If you expose URNs in an API, treat them as opaque strings; clients shouldn’t parse semantic structure beyond pattern validation.

11. Putting It Together — Example Dissection

https://media.example.com:8443/assets/img/banner.png?theme=dark&v=5#hero
└─ scheme: https
   └─ authority: media.example.com:8443
      ├─ host: media.example.com
      └─ port: 8443
└─ path: /assets/img/banner.png
└─ query: theme=dark&v=5
   ├─ theme = dark
   └─ v = 5
└─ fragment: hero (client scroll target or state)

URN counterpart (naming same conceptual image in a registry):

urn:example:asset:img:banner:5

12. Quick Decision Cheatsheet

Need	Use	Why
Load a web resource	URL	Must locate & fetch
Provide persistent name across hosts	URN	Location can change
Link within your SPA & preserve filters	URL (query)	Share/reload state
Link to in-page section	URL (fragment)	Scroll / highlight
Name a spec / book / RFC	URN	Standards ecosystems

13. Common Pitfalls & Anti-Patterns

Pitfall	Better Approach
Packing entire view model JSON into query	Store large ephemeral state locally; keep shareable keys only
Using fragment for SEO-relevant content (#!)	Use real paths + SSR / prerender
Mixed-case path segments	Normalise to lowercase slugs
Credentials in URL	Use headers / OAuth flows
Unbounded query parameters from UI filters	Cap keys & paginate
Relying on implicit base without specifying <base> in complex docs	Add <base> or use absolute paths

14. References & Attribution

1. MDN Web Docs — URL interface (parsed property behaviors, constructor & searchParams) (paraphrased under CC BY-SA 2.5/3.0 +).
2. MDN Web Docs — URIs overview (generic structure & components) (paraphrased).
3. MDN Web Docs — URN scheme (syntax & examples) (paraphrased).
4. RFC 3986 (generic URI syntax) — authoritative grammar.
5. Personal implementation & SPA routing experience.

All MDN-derived material paraphrased; consult original pages for verbatim definitions.
